Description

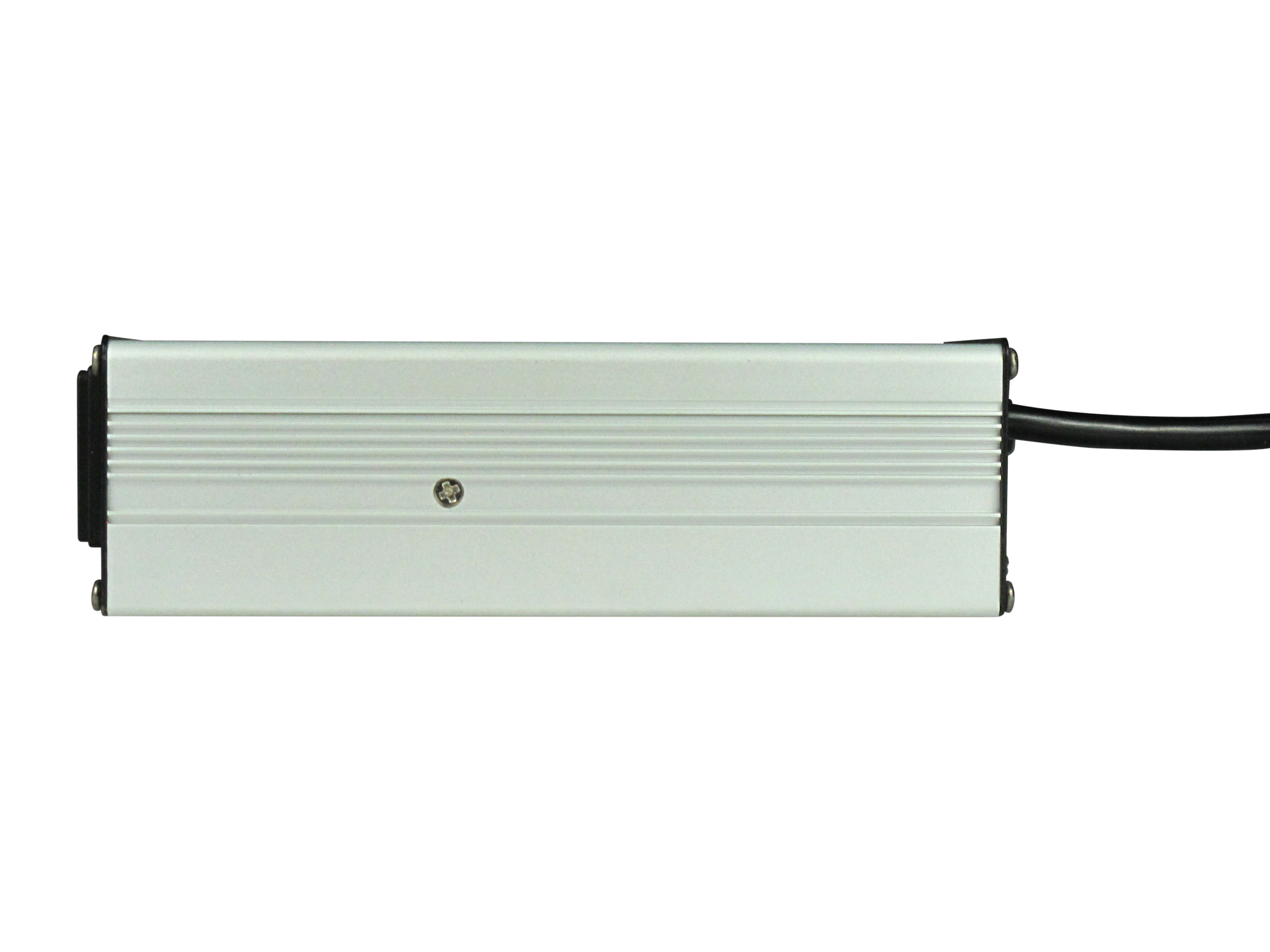

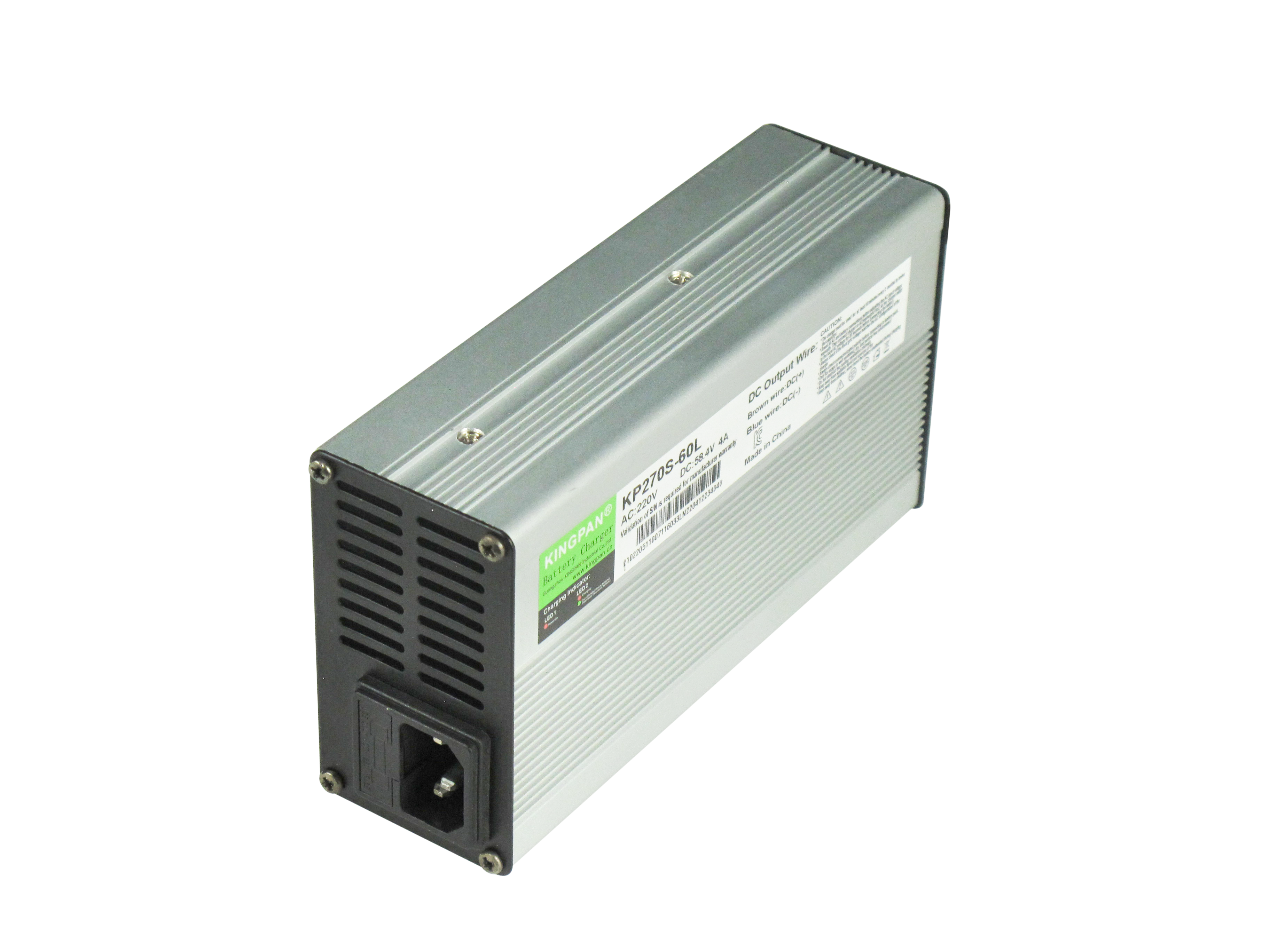

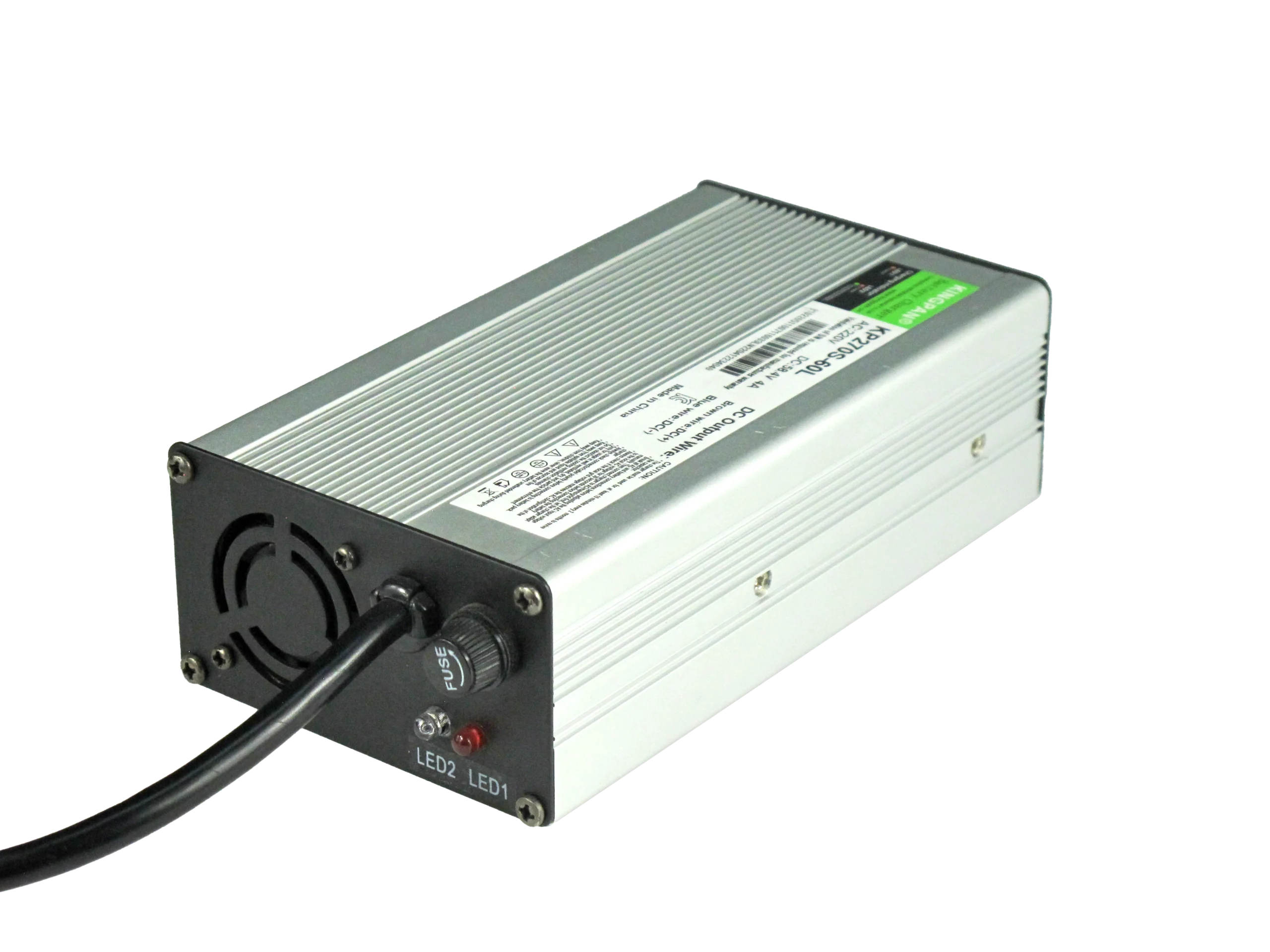

The KP270S 270W portable battery charger is a versatile and compact charging solution for electric bikes, e-scooters, skateboards, light electric trolleys . Equipped with an intelligent control chip, full aluminum alloy heat dissipation casing, built-in cooling fan and customizable charging curves including pre-charging and automatic shut-off, it ensures safe, efficient, and reliable battery charging.
Certified with CE, UL and PSE safety certifications, this charger reaches high conversion efficiency and features multiple built-in protection functions against overcharge, overcurrent, overvoltage and short circuit, making it ideal for daily commuting, outdoor travel and household light electric equipment charging scenarios.
Compatible with corresponding lithium and lead-acid battery packs, it efficiently charges batteries while minimizing energy loss and extending battery service life.
Appliaction
- Electric Motorcycle / AGV
- Electric forklift / Drone
- Shuttle Bus / Lawn mower
Technical advantage
Technology Features for CNC (Computer Numercial Control)
- Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process.

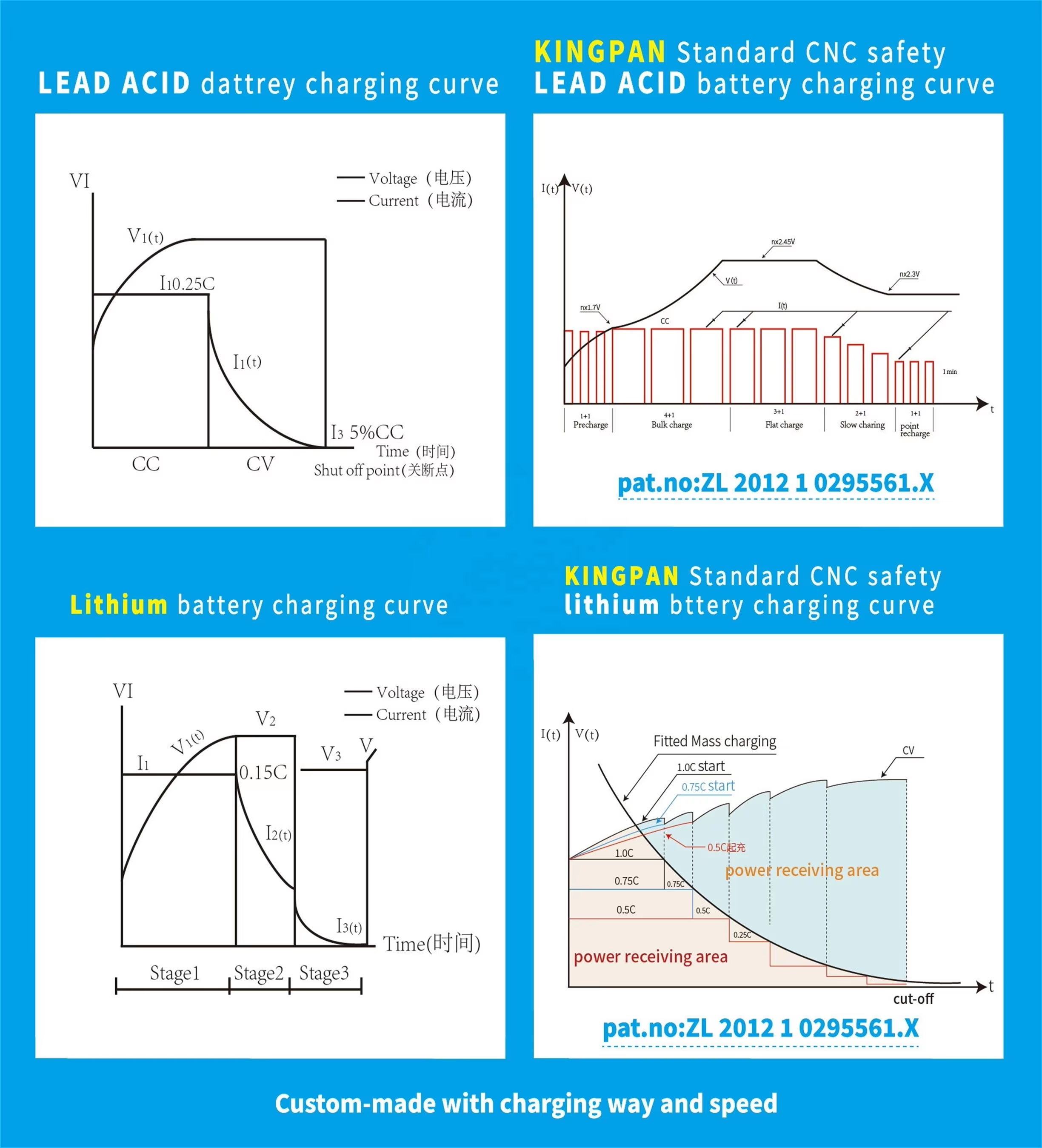

- Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.
Kingpan charging mode
Variable frequency and variable current, flexible equalization, flash charging and shutoff
- The traditional charging mode is constant current (CC)/constant voltage (CV) charging
- Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
- Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
Technical parameters
| power： |
150W（150S） |
| size： |
142*90*50 |
| Input： |
110/220 |
| output： |
12V/8A |
24V/5A |
36V/3A
|
| 48V/2.5A |
60V/2A |
|
| power： |
180W（180S） |
| size： |
162*90*50 |
| Input： |
110/220 |
| output parameters： |
12V/12A |
24V/8A |
36V/5.5A
|
| 48V/4A |
60V/3A |
|
| power： |
270W（270S） |
| size： |
162*90*50 |
| Input： |
110/220 |
| output parameters： |
12V/15A |
24V/9A |
36V/6A
|
| 48V/4.5A |
60V/3.5A |
72V/3A
|
| power： |
360W（360S） |
| size： |
177*90*63 |
| Input： |
110/220 |
| output parameters： |
12V/18A |
24V/12A |
36V/8A
|
| 48V/6A |
60V/5A |
72V/4A
|
