PRODUCT DETAIL

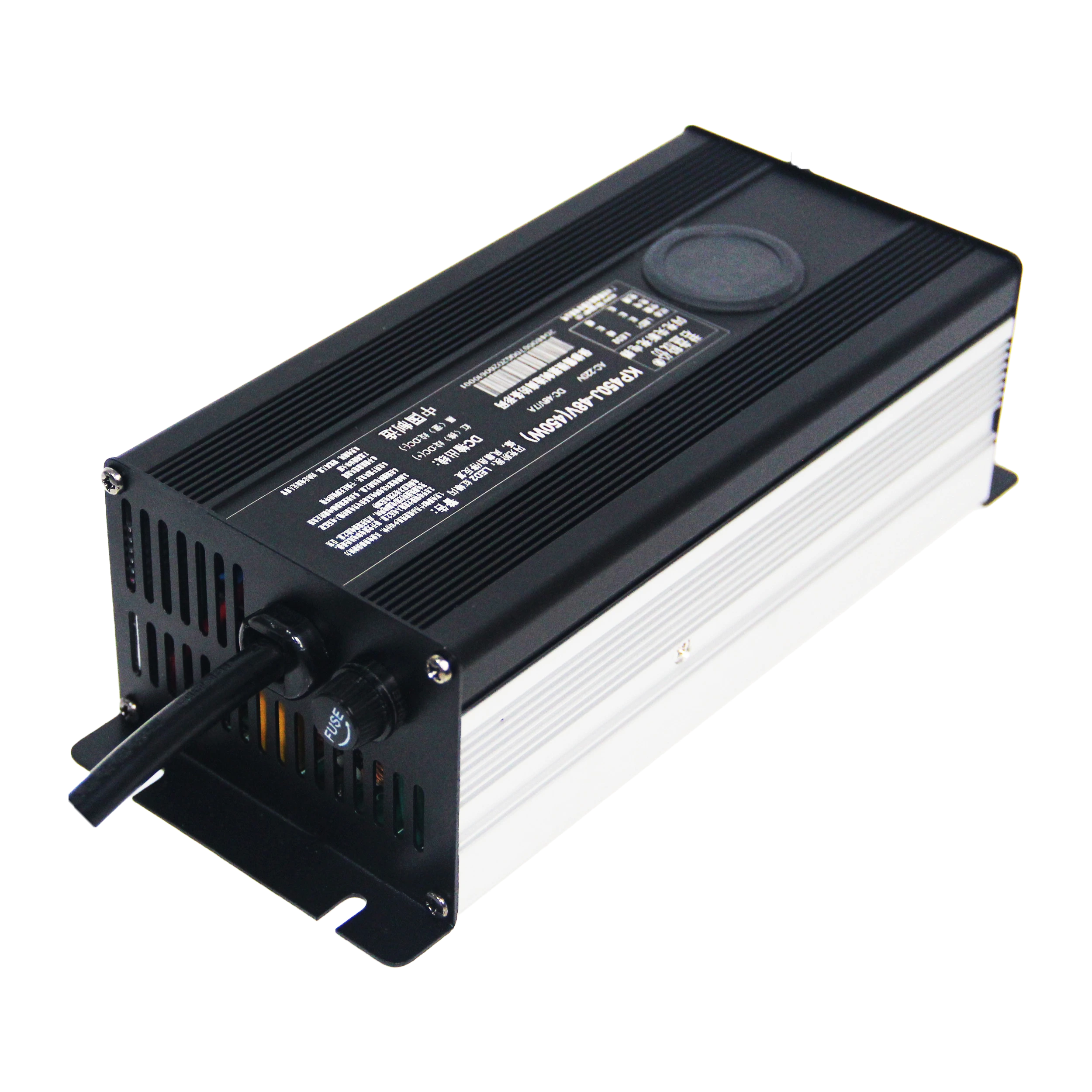

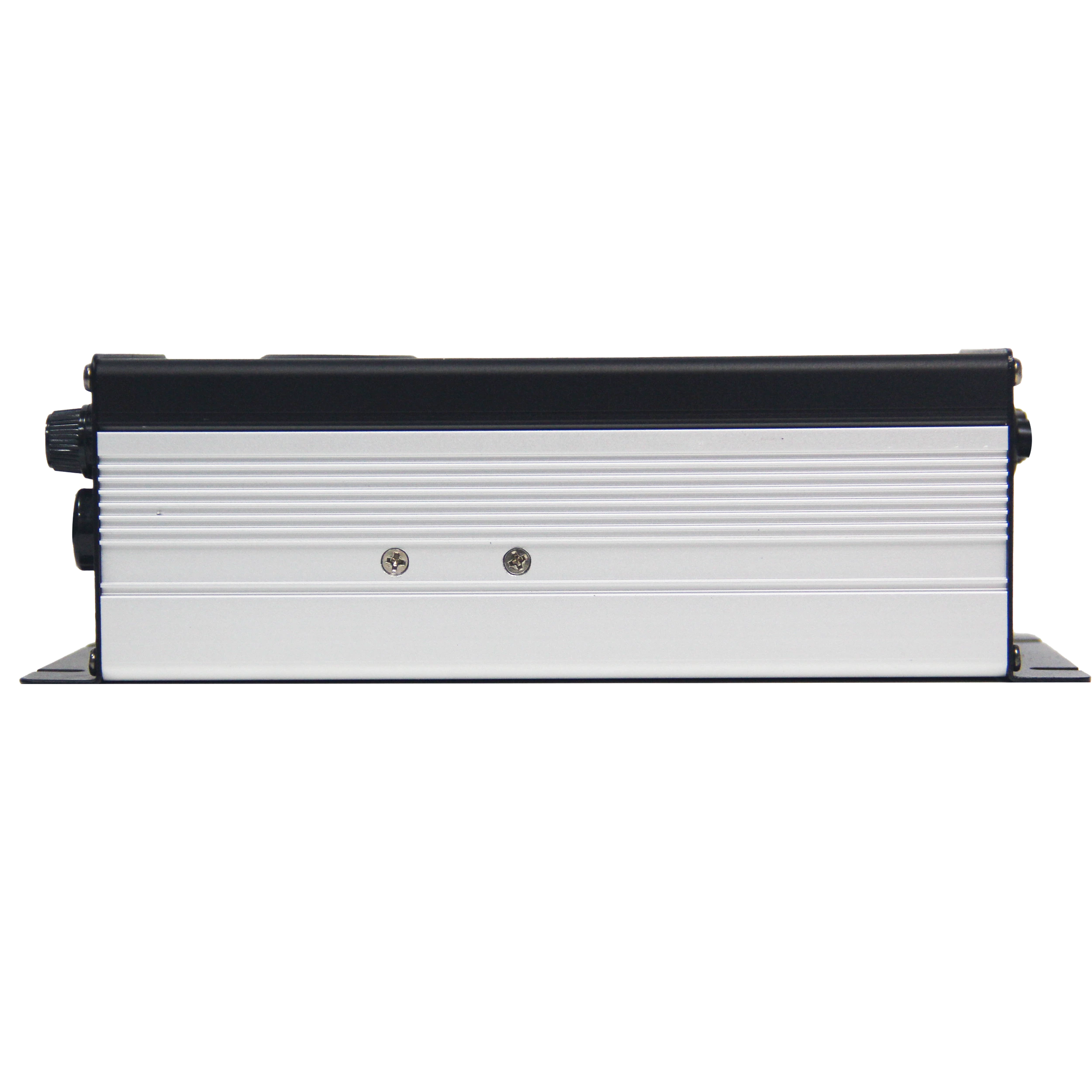

This product series adopts air-cooled heat dissipation structure and frequency conversion equalization & flash charging cut-off technology, supporting fully automatic surge charging, flat charging, trickle charging and automatic shut-off upon full charge. It features high-precision current and voltage locking to realize adequate charging without overcharging, together with overcurrent, overvoltage and short-circuit protection for high safety. Equipped with indicator light and durable all-aluminum housing, the charger supports built-in digital output control, enable control and optional CAN control for system integration. Specially adapted for electric two-wheelers, three-wheelers, four-wheelers and tracked vehicles. With patented technology and 5-year warranty, this series delivers stable and reliable charging performance for various electric vehicle and industrial equipment scenarios.

Technology Features for CNC (Computer Numercial Control)

1. Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process.
2. Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.

Variable frequency and variable current, flexible equalization, flash charging and shutoff

• The traditional charging mode is constant current (CC)/constant voltage (CV) charging
• Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
• Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature

power：	360W（360J）
size：	177*90*63
Input：	110/220
output：	12V/18A	24V/12A	36V/8A
	48V/6A	60V/5A	72V/4A

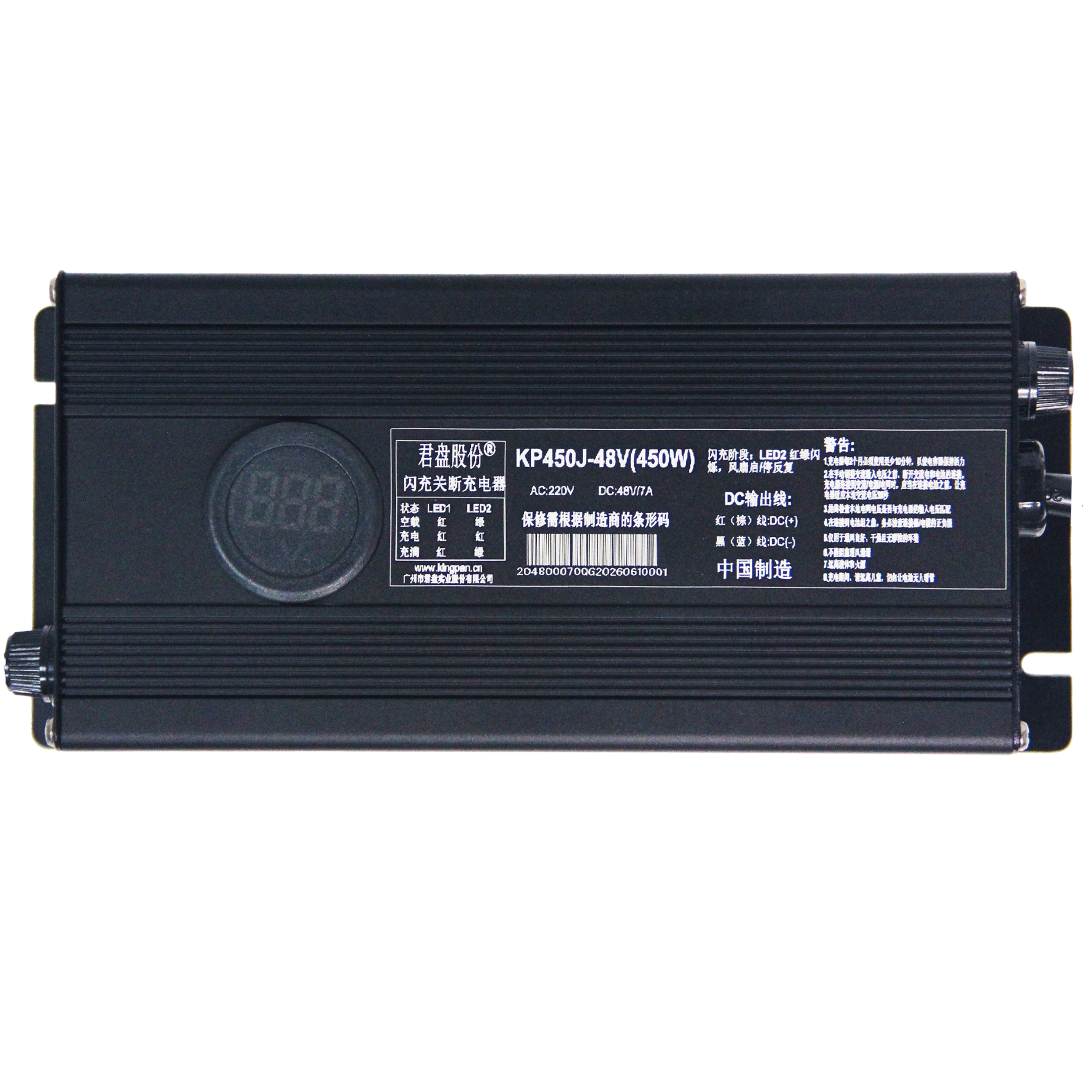

power：	450W（450J）
size：	187*90*63
Input：	110/220
output：	12V/22A	24V/15A	36V/10A
	48V/7.5A	60V/6A	72V/5A
