Description

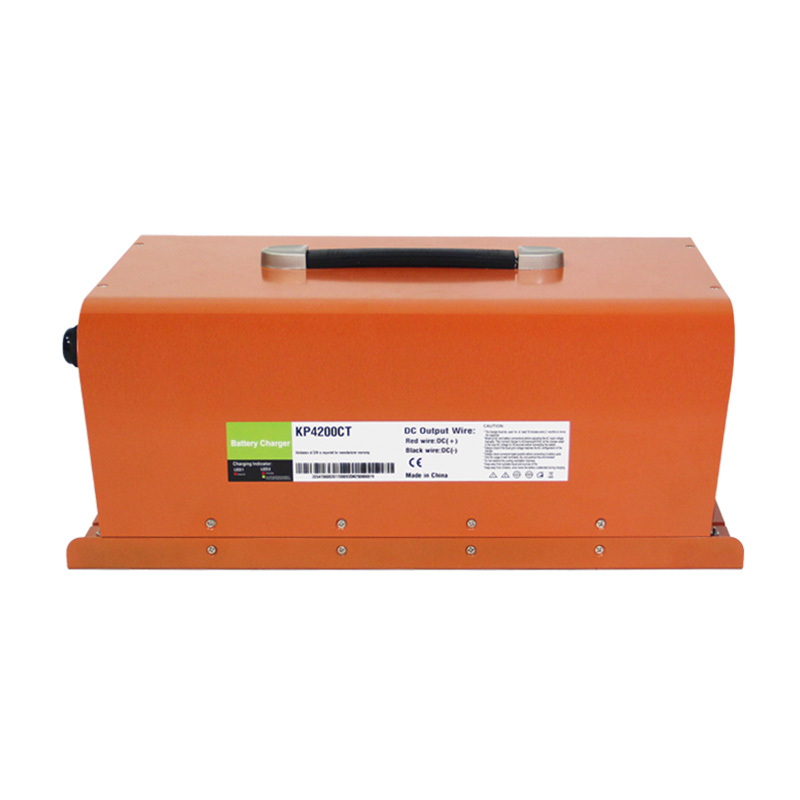

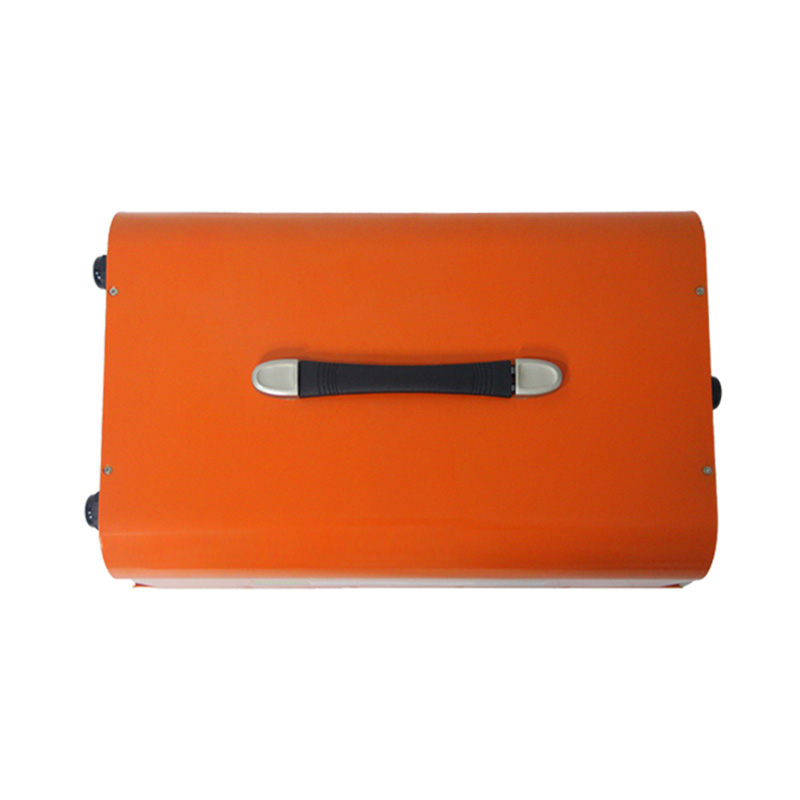

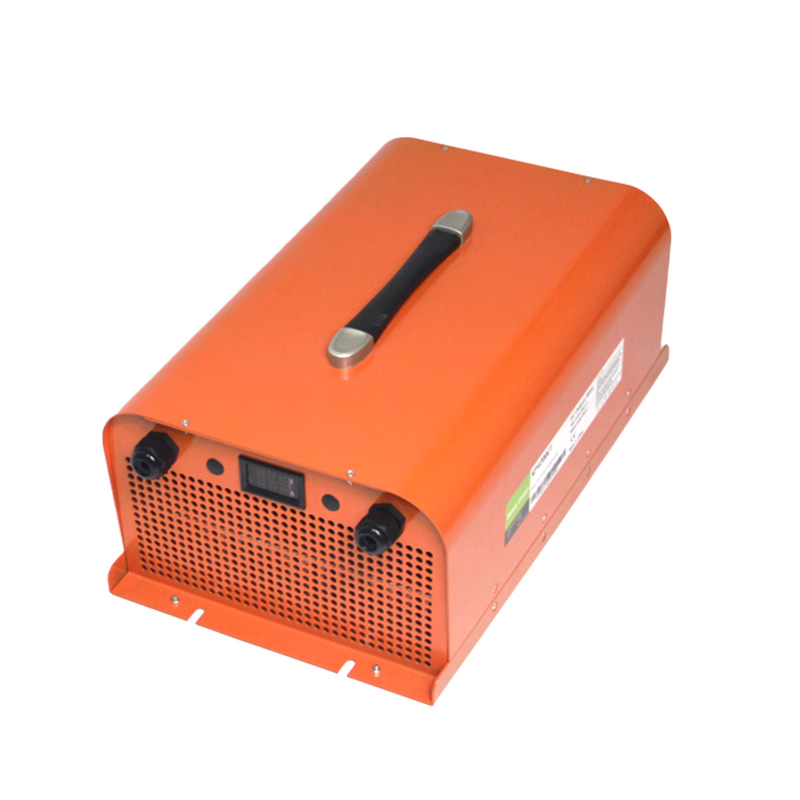

This portable charger adopts nanocrystalline transformer paired with fourth-generation field cutoff IGBT full-bridge switching transistors and independent auxiliary power supply, featuring excellent transient response and low switching loss for enhanced reliability. Integrated with flash charging cut-off and variable frequency & variable current technology, it supports full-process digital control, automatic stop once fully charged and low-battery restart. It comes with adjustable current and voltage with real-time digital readout, and high-precision current & voltage locking prevents overcharging. Built-in overcurrent, overvoltage and short-circuit protection ensures safe operation. The sturdy all-aluminum casing with a convenient carrying handle supports built-in digital output control, enable control and optional CAN communication for flexible integration. Tailored for electric forklifts and other mobile warehouse handling equipment. Adopting patented technology and equipped with a 5-year warranty, it delivers dependable charging performance for on-site warehouse operations.
Appliaction
- Electric Motorcycle / AGV
- Electric forklift / Drone
- Shuttle Bus / Lawn mower
Technical advantage
Technology Features for CNC (Computer Numercial Control)
- Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process.
- Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.
Kingpan charging mode
Variable frequency and variable current, flexible equalization, flash charging and shutoff
- The traditional charging mode is constant current (CC)/constant voltage (CV) charging
- Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
- Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
Technical parameters
| power： |
3000W（3000CT） |
| size： |
355*163*120 |
| Input： |
110/220 |
| output： |
12V/100A |
24V/100A |
36V/65A
|
| 48V/50A |
60V/40A |
72V/33A
|
| power： |
3600W（3600CT） |
| size： |
373*206*124 |
| Input： |
110/220 |
| output： |
12V/100A |
24V/100A |
36V/80A
|
| 48V/60A |
60V/45A |
72V/40A
|
| power： |
4200W（4200CT） |
| size： |
373*206*124 |
| Input： |
110/220 |
| output： |
12V/150A |
24V/120A |
36V/90A
|
| 48V/70A |
60V/55A |
72V/45A
|
