PRODUCT DETAIL

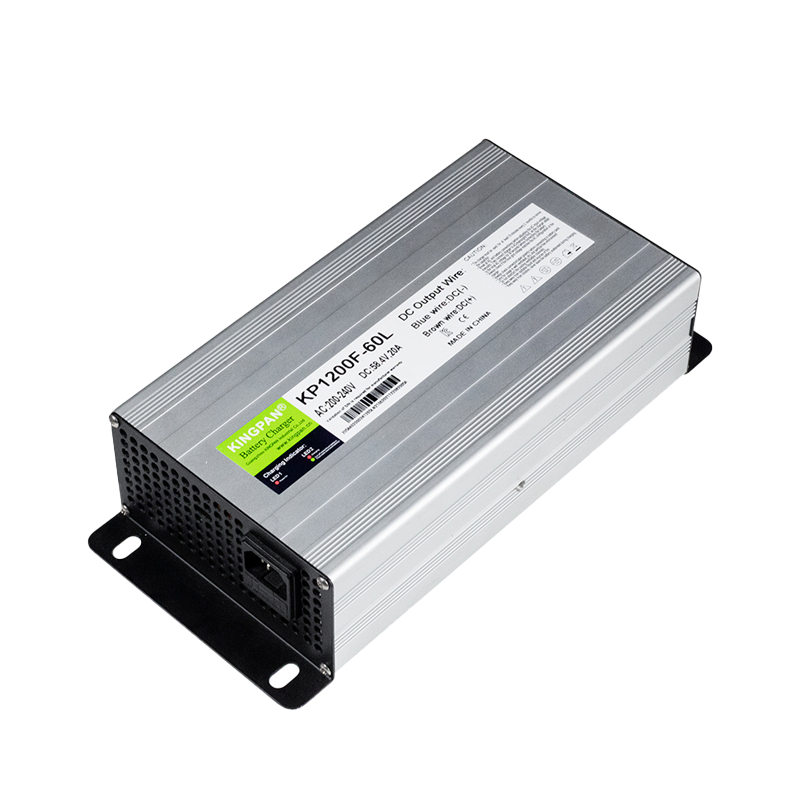

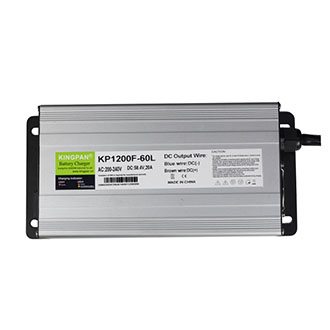

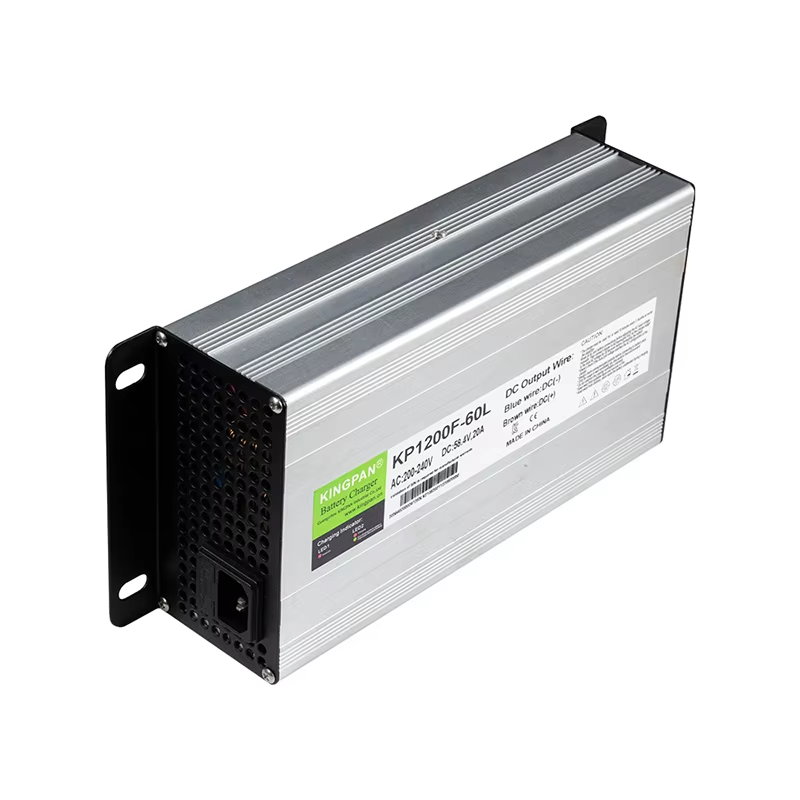

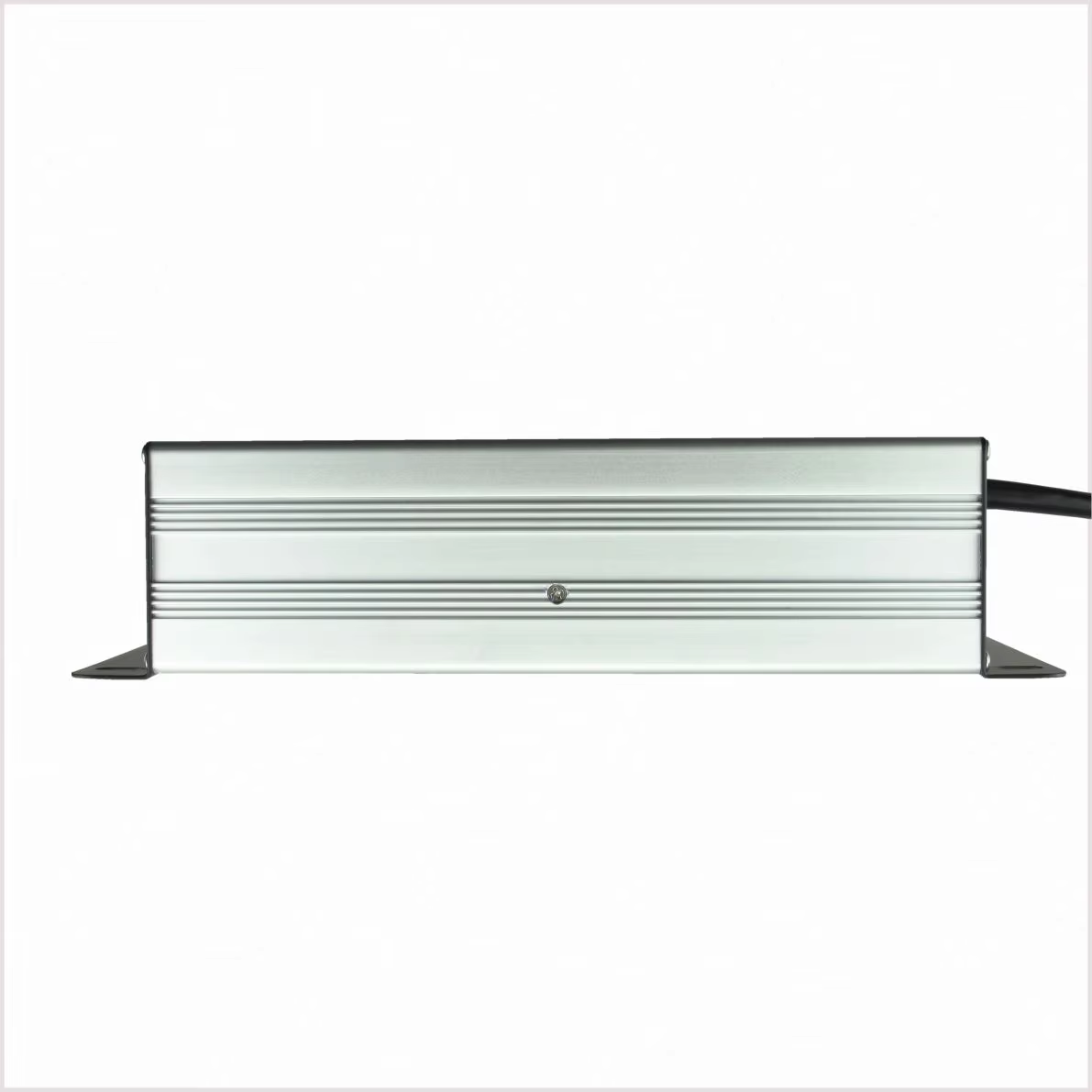

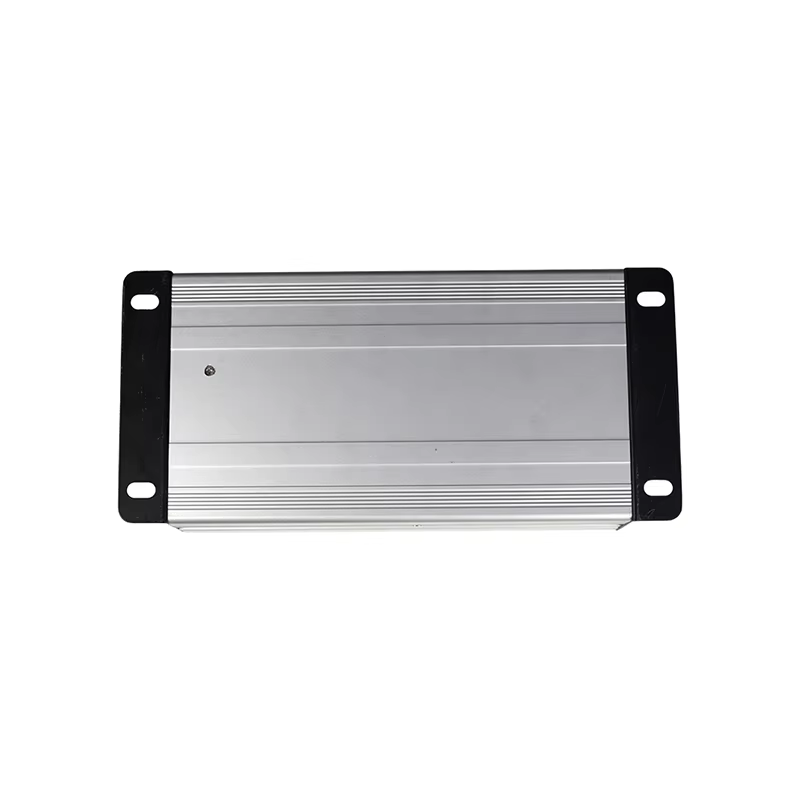

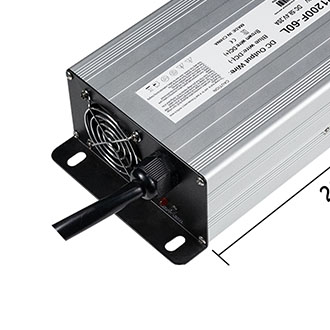

Engineered with advanced half-bridge topology, this charger integrates 4th-generation high-frequency field cutoff IGBT and independent TNY280 auxiliary power supply. Equipped with flash charging cut-off and variable frequency & variable current technology, it enables full digital charging management, automatic stop upon full charge and low-battery restart function. High-precision current and voltage locking effectively avoids overcharging, while built-in overcurrent, overvoltage and short-circuit safeguards guarantee reliable operation. Constructed with robust all-aluminum enclosure and indicator lights, it supports built-in digital output control, enable control and optional CAN bus communication for seamless equipment interconnection. Optimized for electric warehouse equipment including electric forklifts, lifting platforms and stackers. Certified to CE, KC, UL and PSE standards, backed by patented technology and a 5-year warranty, it delivers consistent, long-lasting charging performance for material handling scenarios.

Technology Features for CNC (Computer Numercial Control)

1. Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process.
2. Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.

Variable frequency and variable current, flexible equalization, flash charging and shutoff

• The traditional charging mode is constant current (CC)/constant voltage (CV) charging
• Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
• Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature

power：	900W（900F）
size：	240*135*70
Input：	110/220
output	12V/50A	24V/30A	36V/20A
	48V/15A	60V/12A	72V/10A
power：	1200W（1200F）
size：	260*135*70
Input：	110/220
output：	12V/50A	24V/40A	36V/25A
	48V/20A	60V/15A	72V/12A
