Description
This charger model is KP1200C, which is a 1200W high-power intelligent charger equipped with an intelligent independent digital control chip for precise charging management. It adopts an all aluminum alloy shell, which has excellent heat dissipation and durability. With dual international certifications of CE and KC, it meets safety standards in the European, American, and Korean markets.
Appliaction
- Electric Motorcycle / AGV
- Electric forklift / Drone
- Shuttle Bus / Lawn mower
Advantage

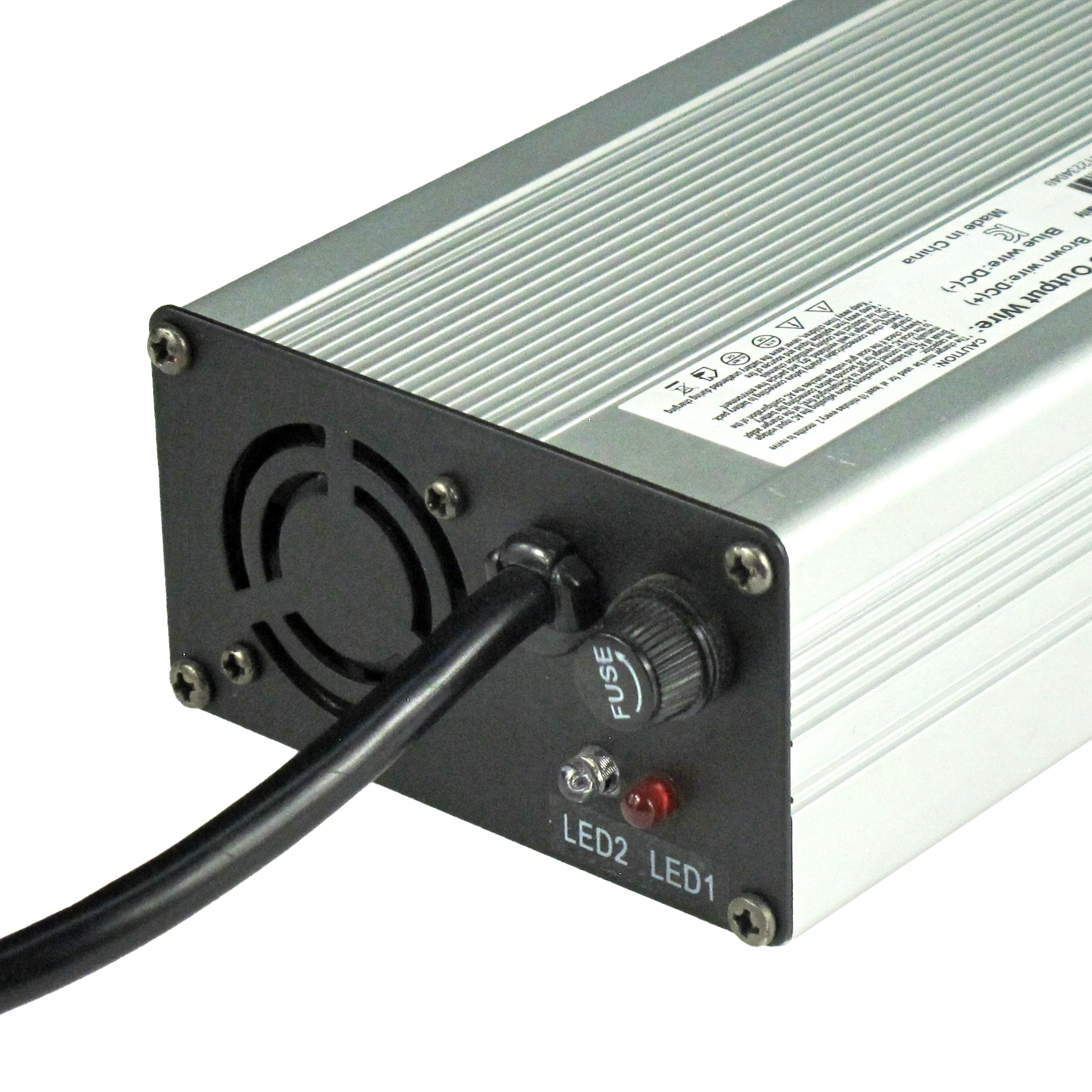

- 1.Fan rapid cooling design
- Silent throughout the process, providing a more advanced charging experience
- 2.Indicator light display
- Keep track of the charging status at any time, making your charging experience more comfortable
Technical advantage
Technology Features for CNC (Computer Numercial Control)
- Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process
- Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.
Kingpan charging mode
Variable frequency and variable current, flexible equalization, flash charging and shutoff
- The traditional charging mode is constant current (CC)/constant voltage (CV) charging
- Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
- Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
Technical parameters
| power |
270W |
| size |
162*90*50 |
| output parameters |
12V/22A |
24V/11A |
36V/7.5A
|
| 48V/5A |
60V/4.5A |
72V/3.5A |
