PRODUCT DETAIL

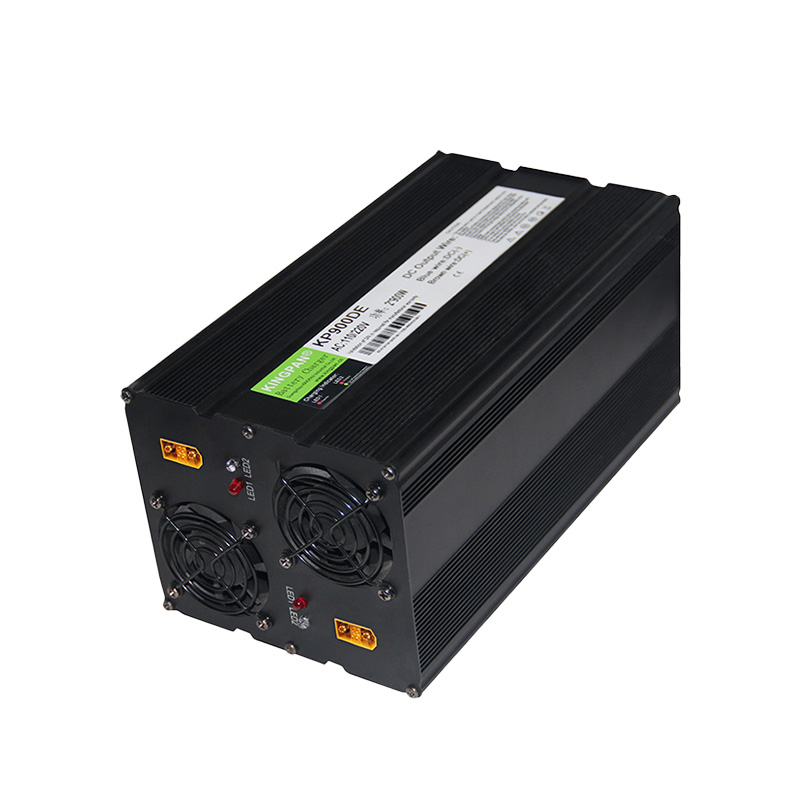

Built for high-power dual-channel charging, this series boasts a power factor above 0.98 and supports a wide 90–250V universal AC input range. It adopts an independent auxiliary power source and nanocrystalline transformer matched with 4th-generation field cutoff IGBT full-bridge switches, delivering excellent transient response and low switching loss to maintain stable output under heavy-load conditions. Integrated with flash charging cut-off and variable frequency & variable current technology, it enables intelligent whole-cycle charging management, featuring automatic shutdown upon full charge and low-battery restart. Precision current and voltage locking effectively prevents overcharging, while built-in overcurrent, overvoltage and short-circuit protection safeguards battery safety. The robust all-aluminum enclosure is waterproof, shockproof, dustproof and explosion-proof, and it can be installed onboard mobile equipment. It reserves digital output control and optional CAN bus communication ports for seamless integration into intelligent systems. Suited for medium and large plant protection UAVs, heavy-lift UAVs and other high-power battery equipment. Backed by proprietary patented technology and a 5-year warranty, it provides efficient and stable dual-channel charging solutions for high-energy battery packs.

Technology Features for CNC (Computer Numercial Control)

1. Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process.
2. Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.

Variable frequency and variable current, flexible equalization, flash charging and shutoff

• The traditional charging mode is constant current (CC)/constant voltage (CV) charging
• Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
• Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
