Description

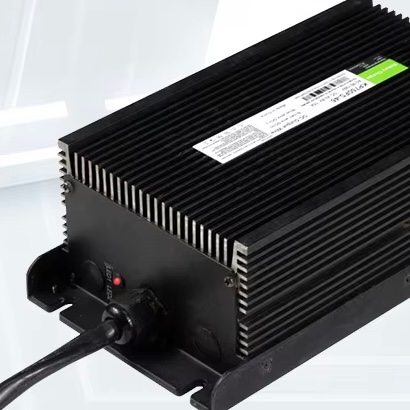

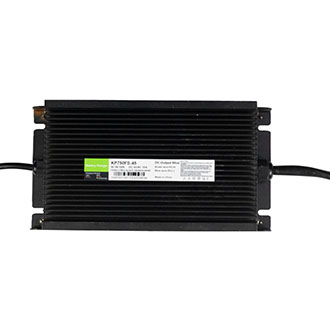

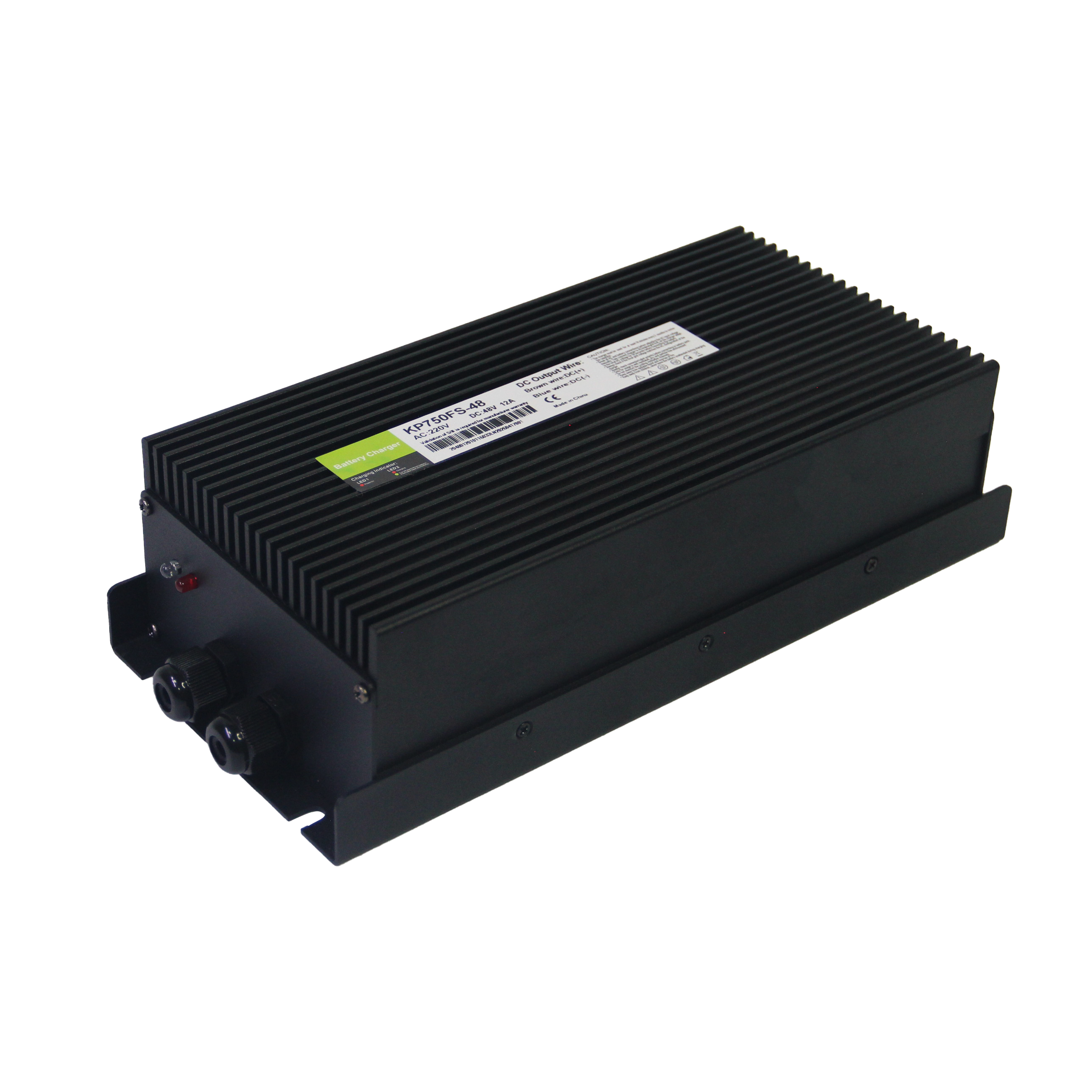

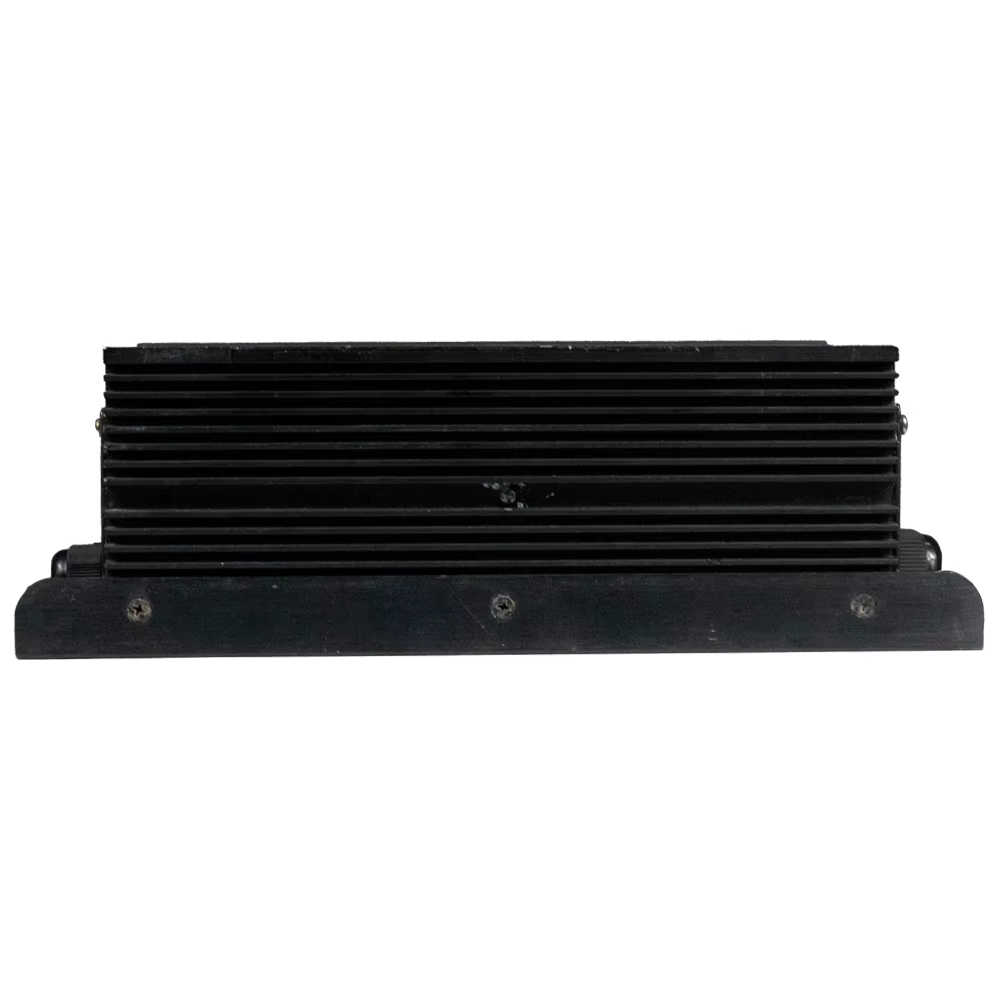

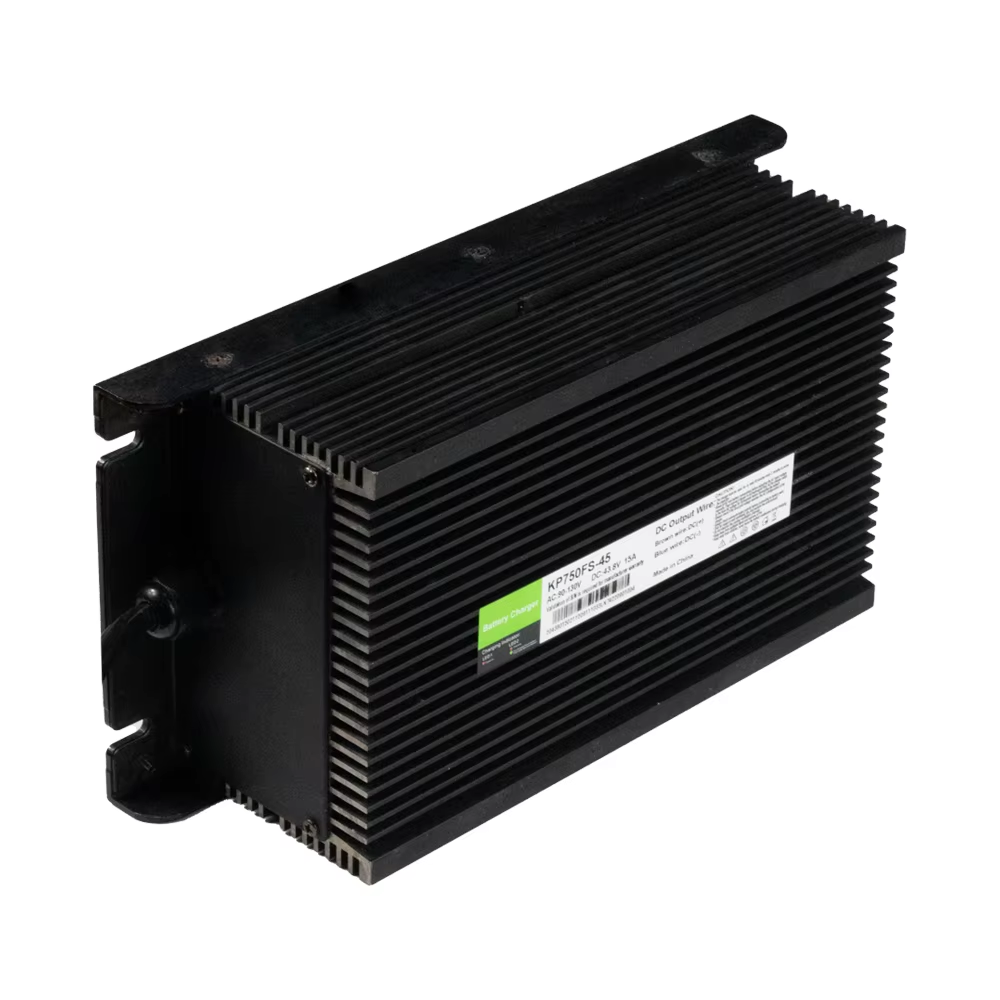

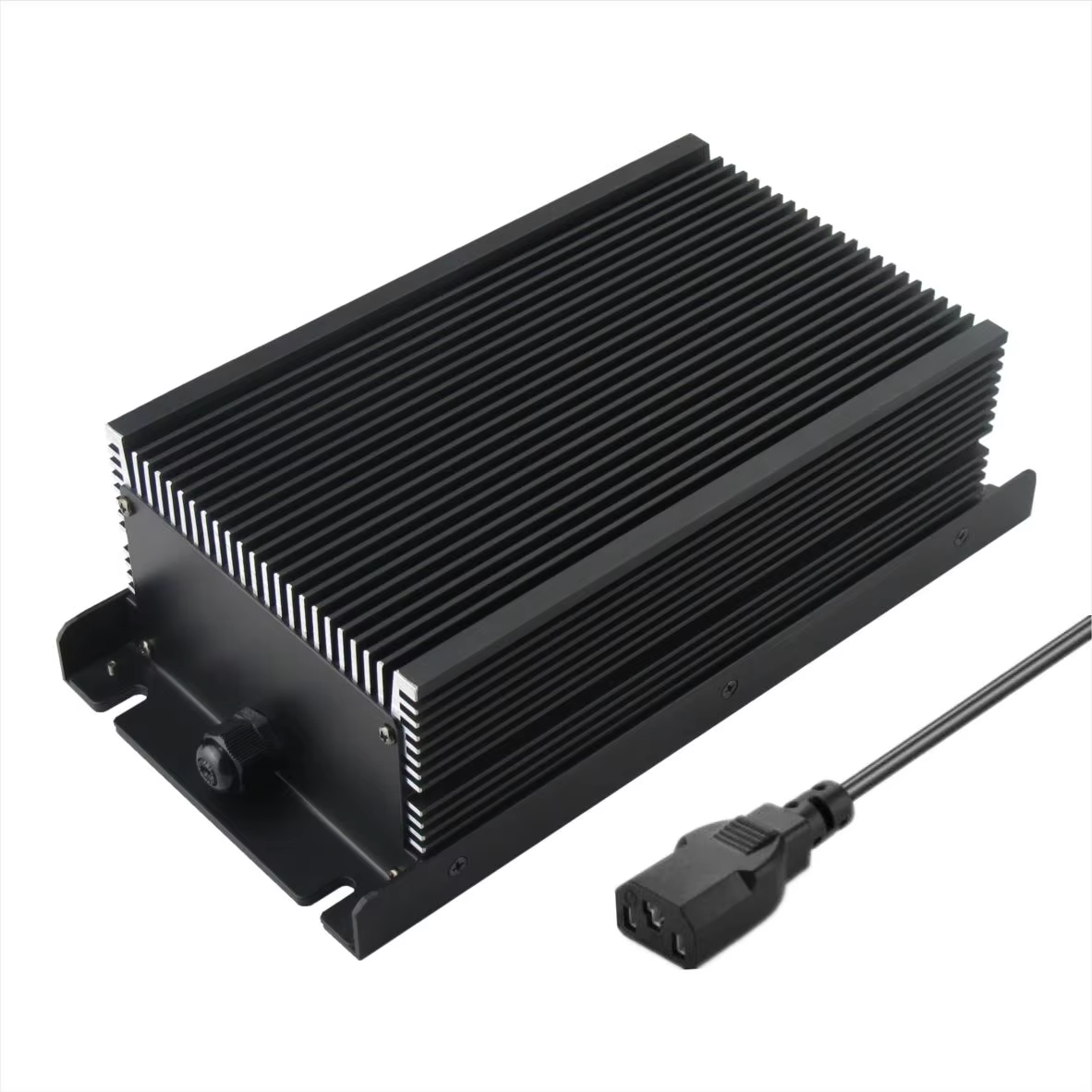

KP750FS is a 750W smart charger designed specifically for mobile devices such as electric scooters and commuter bicycles. It adopts an all aluminum alloy shell and MCU microcomputer control, with two core advantages: IP68 waterproof and 0 dB fanless silent operation. With dual international certifications from CE and UL, it is suitable for demanding scenarios such as outdoor use, water wading, and silent operation.
Appliaction
- Electric Motorcycle / AGV
- Electric forklift / Drone
- Shuttle Bus / Lawn mower
Advantage
- 1.Fanless natural cooling
- Silent throughout the process, providing a more advanced charging experience
- 2.Indicator light display
- Keep track of the charging status at any time, making your charging experience more comfortable
Technical advantage
Technology Features for CNC (Computer Numercial Control)
- Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process
- Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.
Kingpan charging mode
Variable frequency and variable current, flexible equalization, flash charging and shutoff
- The traditional charging mode is constant current (CC)/constant voltage (CV) charging
- Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
- Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
Technical parameters
| power |
750W |
| size |
240*145*88 |
| output parameters |
12V/30A |
24V/25A |
36V/15A
|
| 48V/12A |
60V/10A |
72V/8A |
