Description

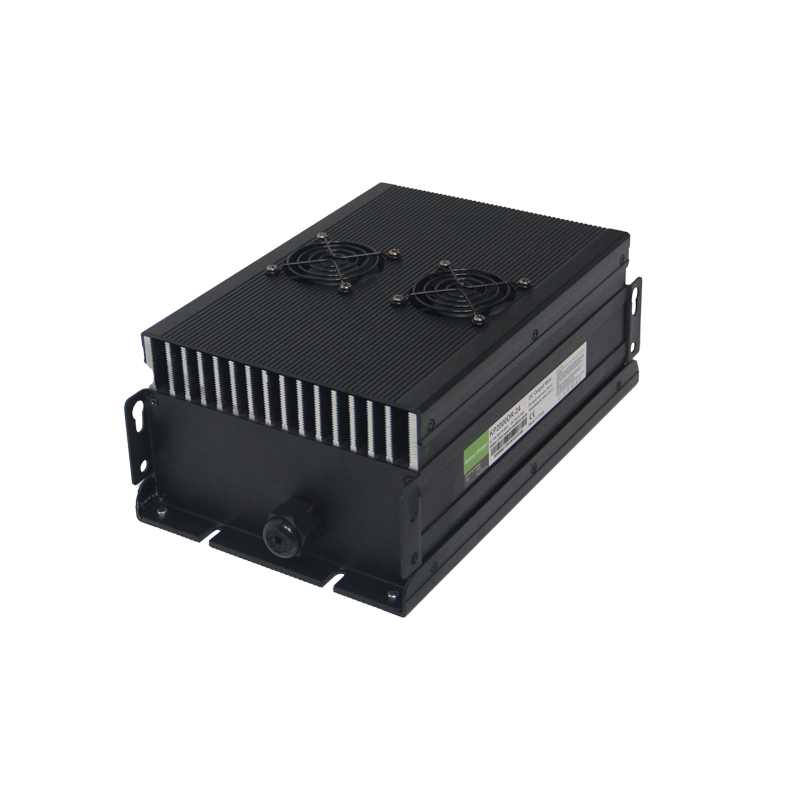

This KP3000DR charger is a 3000W high-power, waterproof, intelligent charger designed specifically for industrial equipment such as forklifts, AGVs (Automated Guided Vehicles), and electric tractors. It is suitable for lead-acid and lithium battery systems. IP66 waterproof design, can be installed inside or outside the car, ensuring stable operation even when working outdoors in rainy weather. This product has passed CE certification and complies with international safety standards.
Appliaction
- Electric Motorcycle / AGV
- Electric forklift / Drone
- Shuttle Bus / Lawn mower
Advantage

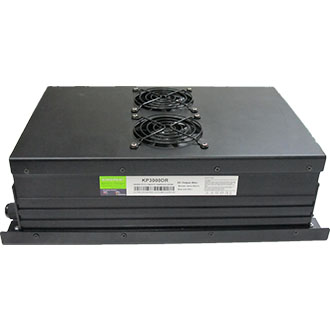

- 1.All-aluminum shell, Junpan patent
- Silent throughout the process, providing a more advanced charging experience

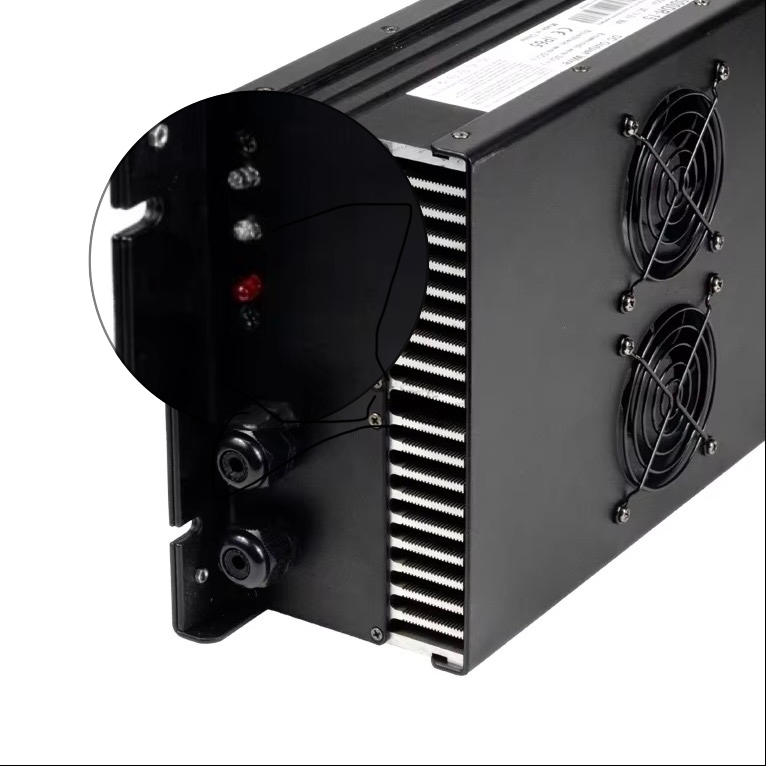

- 2.Indicator light display
- Keep track of the charging status at any time, making your charging experience more comfortable
Technical advantage
Technology Features for CNC (Computer Numercial Control)
- Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process
- Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.
Kingpan charging mode
Variable frequency and variable current, flexible equalization, flash charging and shutoff
- The traditional charging mode is constant current (CC)/constant voltage (CV) charging
- Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
- Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
Technical parameters
| power |
3000W |
| size |
305*175*110 |
| output parameters |
12V/80A |
24V/70A |
36V/60A
|
| 48V/50A |
60V/40A |
72V/33A |
