Description

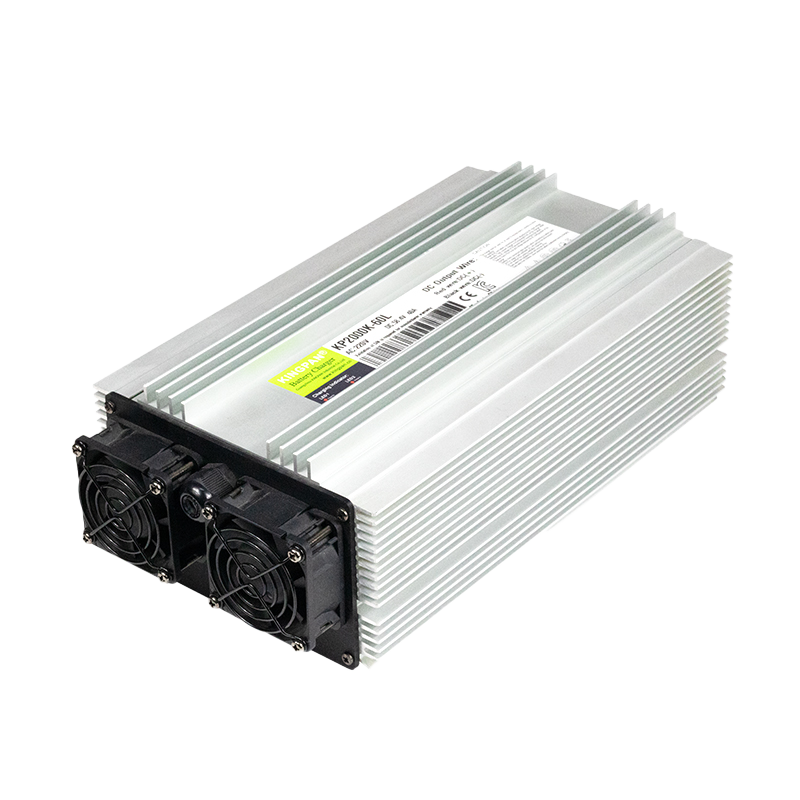

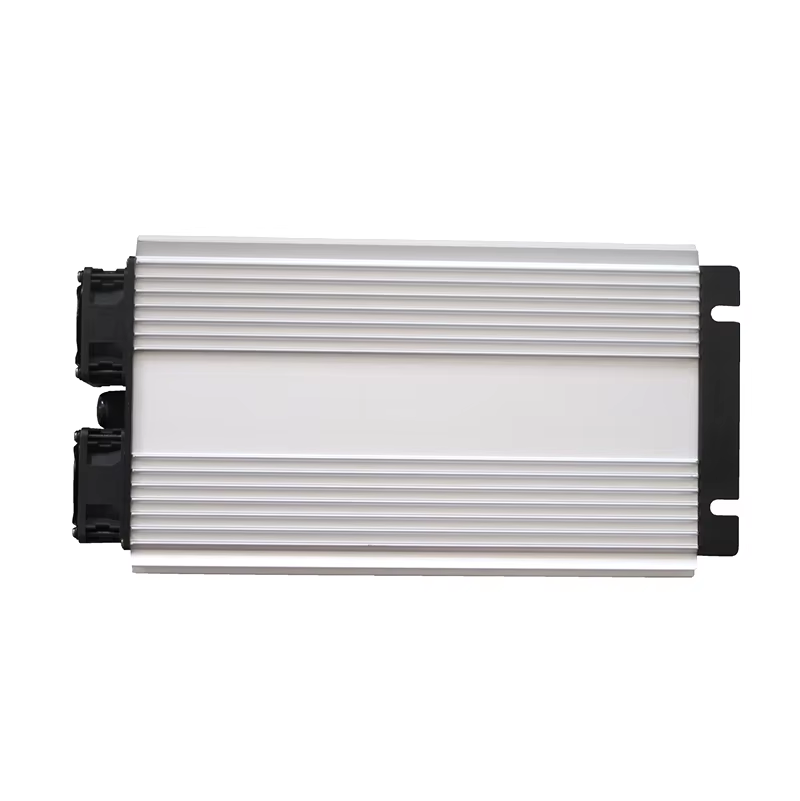

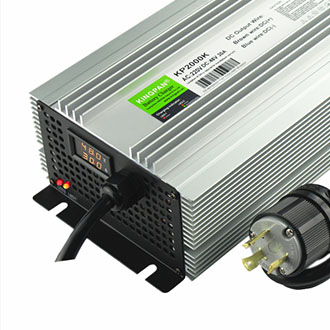

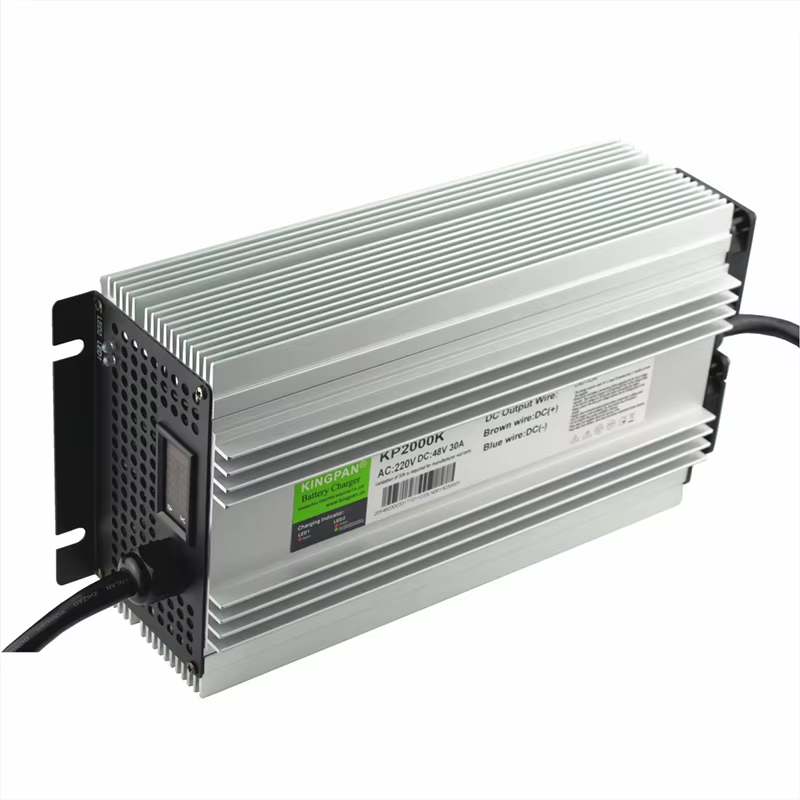

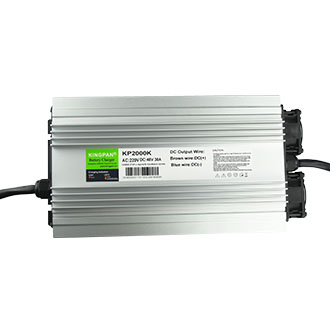

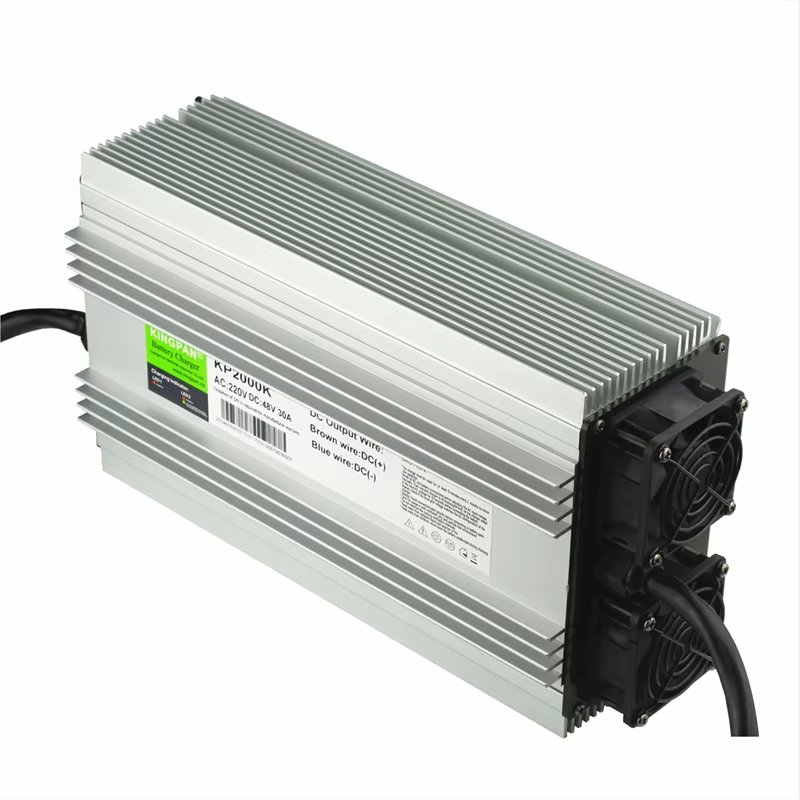

This product series adopts advanced half-bridge switching design with 4th-generation high-frequency field cutoff IGBT and independent TNY280 auxiliary power supply. Combined with nanocrystalline transformer and IGBT switching tube, it realizes low-frequency and high-efficiency output. It adopts flash charging cut-off & variable frequency and variable current technology, and supports full-process digital control, automatic shut-off when fully charged and restart under low battery status. High-precision current and voltage locking prevents overcharging, with built-in overcurrent, overvoltage and short-circuit protection for high safety. It adopts all-aluminum sturdy housing with dual-fan strong air cooling and indicator light, and supports built-in digital output control, enable control and optional CAN communication for system docking. Specially adapted for automated guided vehicles (AGV, RGV, ARV and automatic delivery vehicles). Certified to CE and KC standards, with patented technology and 5-year warranty, this charger delivers stable and durable charging performance.
Appliaction
- Electric Motorcycle / AGV
- Electric forklift / Drone
- Shuttle Bus / Lawn mower
Technical advantage
Technology Features for CNC (Computer Numercial Control)
- Overcharge protection. Shut off automaticallywhen battery is full charging. Prevent the explosion of battery from 0 vercharging. Greatly improve the safety of charging process.
- Custom- made charging way and speed, like Pre-Charge and Fitted Mass charging. Custom- made a best charging way for your battery. Please check the below pictures of charging curve for your reference.
Kingpan charging mode
Variable frequency and variable current, flexible equalization, flash charging and shutoff
- The traditional charging mode is constant current (CC)/constant voltage (CV) charging
- Lead-acid batteries have the risk of long duration and high risk due to floating charge without disconnection
- Lithium batteries have a risk of not being fully charged due to their cut-off and no flash charging feature
Technical parameters
| 功power： |
2100W（2000K） |
| size： |
290*175*105 |
| Input： |
110/220 |
| output： |
12V/100A |
24V/70A |
36V/45A
|
| 48V/35A |
60V/28A |
72V/22A
|
| power： |
2400W（2400K） |
| size： |
290*175*105 |
| Input： |
110/220 |
| output： |
12V/100A |
24V/80A |
36V/50A
|
| 48V/40A |
60V/30A |
72V/25A
|
| power： |
2700W（2700K） |
| size： |
290*175*105 |
| Input： |
110/220 |
| output： |
12V/100A |
24V/90A |
36V/60A
|
| 48V/45A |
60V/35A |
72V/30A
|
